- This Lab caters to the need of practicals Basic electrical Engineering for all branches of institute.
- Lab is furnished with 10 practical tables & accommodates 10 groups each of 5 students at a time.
- Major equipment’s in the lab:
- AC/DC Machine,
- Motor Generator set,
- Single phase & Three phase transformers
- Ammeters, Voltmeters & Wattmeters, Meggar, proximity speed measuring instrument
- This Lab caters to the needs of practicals related to courses like Electrical DC, AC machines, special motors like BLDC, Stepper& different types of transformers for the S.Y & T.Y. B.Tech. students.
- The carpet is furnished with 6 practical tables & accommodates 6 groups each of 4 student at a time. Load test , Parallel operation, Loss calculation ,Speed control, Speed and Voltage regulation & Power measurement can be performed.
- Major equipment’s in the lab: Experimental trainers
- AC/DC Machines
- AC/DC Motor Generator Test bench
- BLDC Motor Test bench
- Synchronization panel & Power Supply.
- This lab caters to basic Electronics practical’s namely Electronics Devices & Circuit, Digital System & Electronic Circuit Design.
- The is furnished with 8 practical tables & accommodates 16 groups each of 3 student at a time.
- Major equipment’s in the lab include Experimental trainers:
- Transistors,
- Operational Amplifier,
- Oscillator & Amplifier,
- Passive Active M Derived Filter
- Analog Multiplexer Demultiplex & ADC/DAC Trainer Kit
- Logic Gates
- Function Generator
- Cathode Ray Oscilloscopes
- Single & Dual Power Supply.
- This lab caters to the hands on of courses in C programming, Conrol system, simulation study of generating, transmission & distribution systems.
- The furnished with 10 computer tables & 20 HP Make Desktop Computers.
- It caters to the conduction need of blended classrooms for teaching learning & conduction of workshops.
- Use of freewares like scilab, pspice, is encouraged in this lab.
- Total investment of the lab is rupees 4.82 lacs
- This Lab caters to the needs of practicals related to courses like Measurement & Instrumentation and Control System for the students of S.Y. B.Tech. class.
- This lab is furnished with 8 practical tables.
- This lab is well equipped with Measurement trainer kits:
- Wheatstone Bridge, Kelvin Double, Maxwell, Schearing, Anderson, Wein Bridge for R,L,C measurements,
- Control system trainer kits:
- D.C./ A.C. Position Control
- Synchro Transmitter –Receiver
- Stepper Motor /PID Controller Trainer Kit
- Trainer Kits for temperature speed, displacement & force measurement
- Special measuring Instruments: Insulation Resistance & earth leakage Testing units.
- This Lab caters to the needs of practicals related to courses like Power System Analysis, Power System Operation and Control and SwitchGear and Protection for the students of T.Y. B.Tech. class.
- This lab is furnished with 12 practical tables.
- This lab is well equipped with trainer kits:
-
- ETAP Software Tool
- Power-transmission-line-trainer
- CT PT Testing Kit
- MCB and ELCB Kit
- Microprocessor based 3 phase differential relay kit
- Over Under Frequency Relay
- Electromechanical type over current Relay

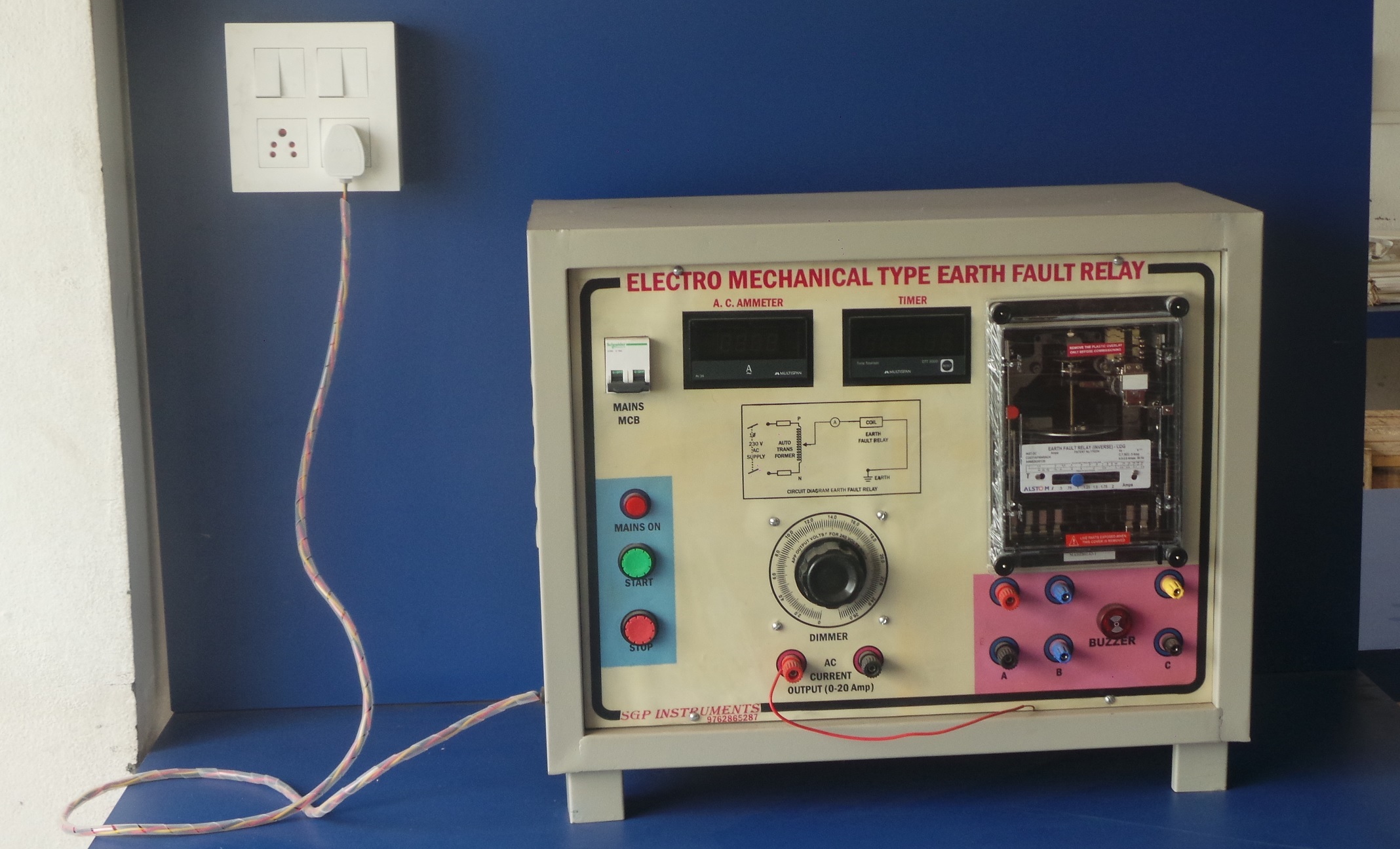

- Electromechanical type Earth fault Relay
- This Lab caters to the needs of practicals related to courses like Automation and Control for the students of T.Y. B.Tech. class.
- This lab is furnished with 8 practical tables.
- Major equipment’s in the lab include Experimental trainers:
- PLC Trainer,
- SCADA Software,
- HMI with programming software,

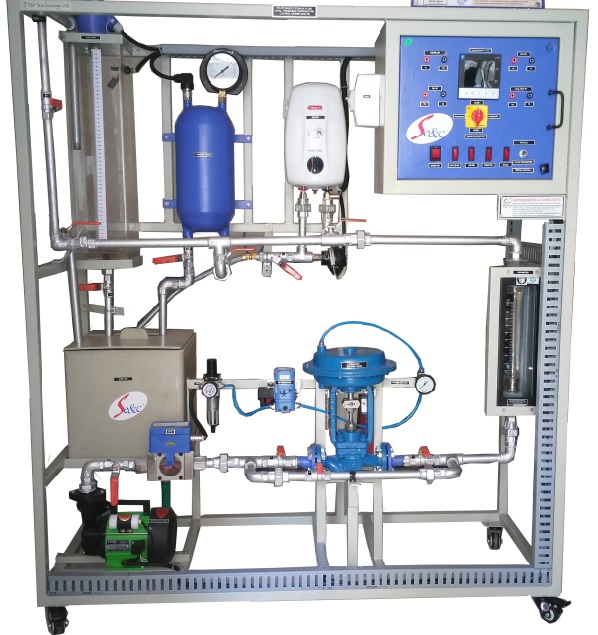

- PC-PID Based Feedback flow,Level,
- Pressure Temperature.Control trainer with SCADA application software and air compressor.
- This lab caters to hte needs of practicals related to courses Solar and Wind energy, Electrical Storage System, Non-conventional Energy System.
- The is furnished with 4 practical tables.
- Major equipment’s in the lab include Experimental trainers:

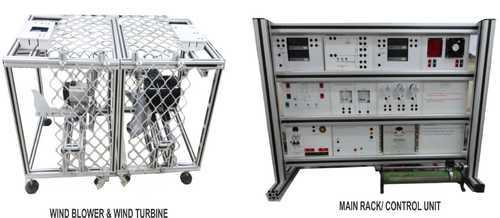

- Wind energy training System,
- Solar trainer System.
